Process of valorization of glycerin

Introduction

Nowadays, big amounts of glycerine are being produced as a subproduct in the process of BIODIESEL production. Each 10 kg of biodiesel produced from vegetable oil generate 1 kg of glycerin. This high production in many cases supposes a problem because the market is unable to reuse it and at the same time its price is very low or null. The removal of large excess of glycerin represents a great technical and environmental problem. Glycerin converts into waste that needs to be managed and removed which increases the costs of biodiesel production.

Process

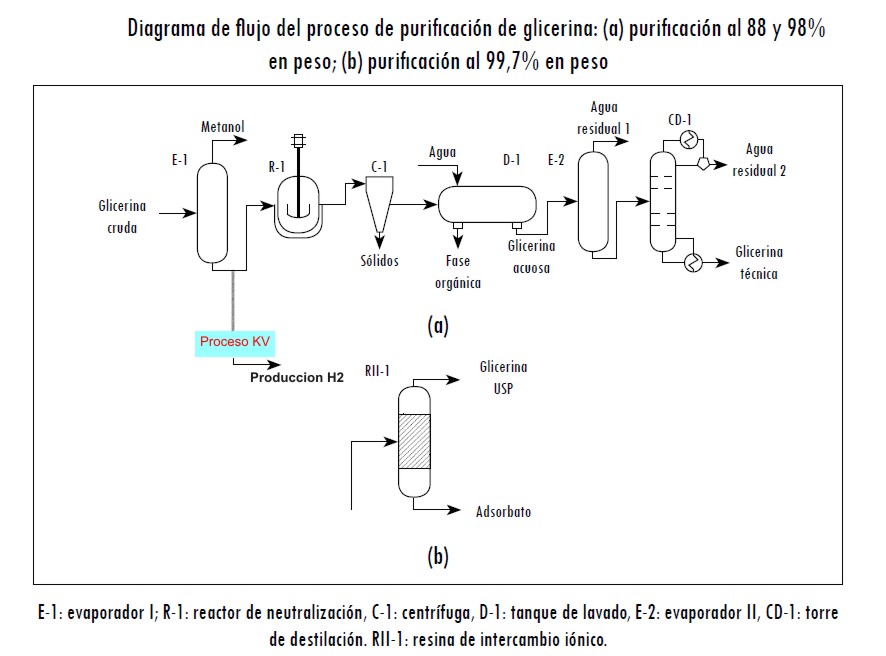

Given the experience of Knowledge Valley in the research fields, its R & D department applied a biphasic process technology of obtaining the subproducts to a process with glycerin. In the first stage we proceed to the obtaining of hydrogen (with concentration superior to 99%) and CO2. In the second stage such products as acetone, ethanol and acetaldehyde are being obtained. During these phases the performance of the process reaches approximately 80%.

A process developed by KV doesn't require any expensive equipment due to the usage of direct mixing obtained as a subproduct of biodiesel production process. No solid contaminants are produced and NaOH can be regenerated.

Results

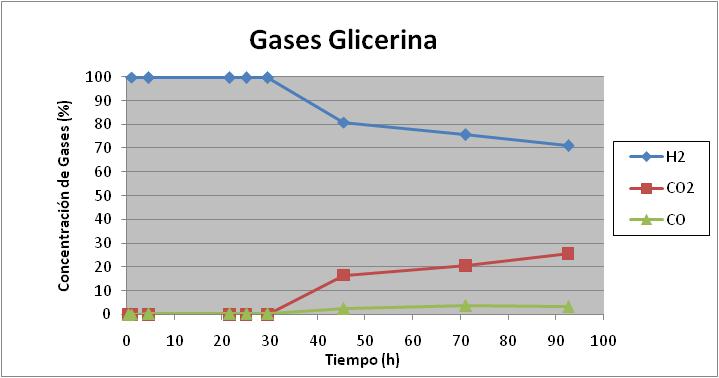

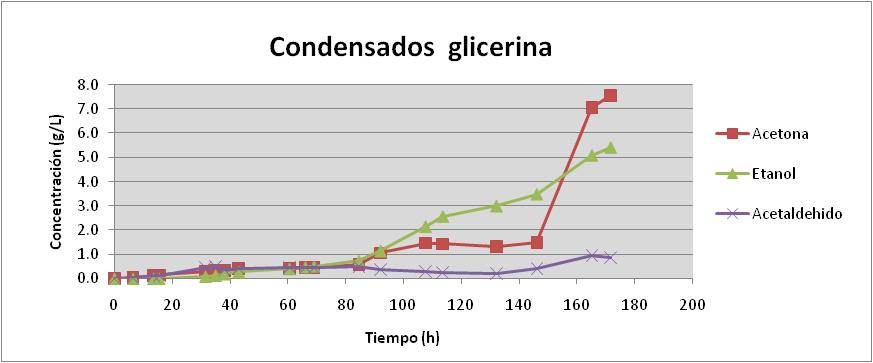

In the following diagrams you can see the evolution over time of new products obtained from glycerin:

Application of obtained products
